Optical Density MeterHome > Products > Optical Density Meter
Description:

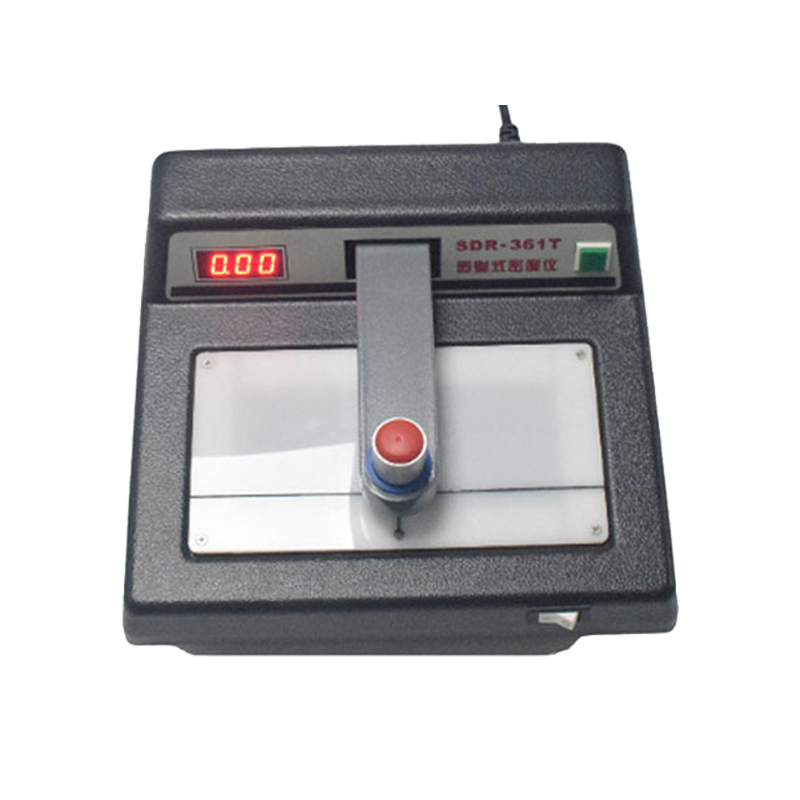

SDR-361T optical density meter has the advantages of accurate reading, good stability, easy operation, high brightness display, etc., the instrument comes with cold light source viewing and viewing table, suitable for printing, PCB film, non-destructive testing, sensitive materials, film, medical, packaging film (film, coating film thickness and uniformity detection), colored glass and other industries detection
Technical Parameter:
Optical Density Range | D=0.00-6.0D |
Sampling Time | 0.05S |
Inaccuracy | 0.03D |
Aperture Size | Φ2.0mm |
Reading Stability | ±0.02mm |
Weight | Approx 2KG |
Overall Dimensions | 350mmX300mmX140mm (LXWXH) |
Measurement Geometry | Diffuse transmission through opal glass (0/d) |
Spectral Conditions | A light source + V(λ) receptor |
Medium Thickness | 0-10mm |
Measurement Arm Length | 200mm |
Display Method | Three-digit digital display |
Power | Approx. 25W |
Power Supply | 50-60HZ, 220V±10% |
Working Environment | 0℃~40℃, Relative humidity≤85% |
Packing List:
Main Optical Density Meter | 1unit |
Calibration Card | 1pcs |
Calibration Certificate | 1pcs |
Power Adapter | 1set |
Air-blowing Kit | 1pcs |
User Manual | 1pcs |
Carrying Case | 1pcs |
