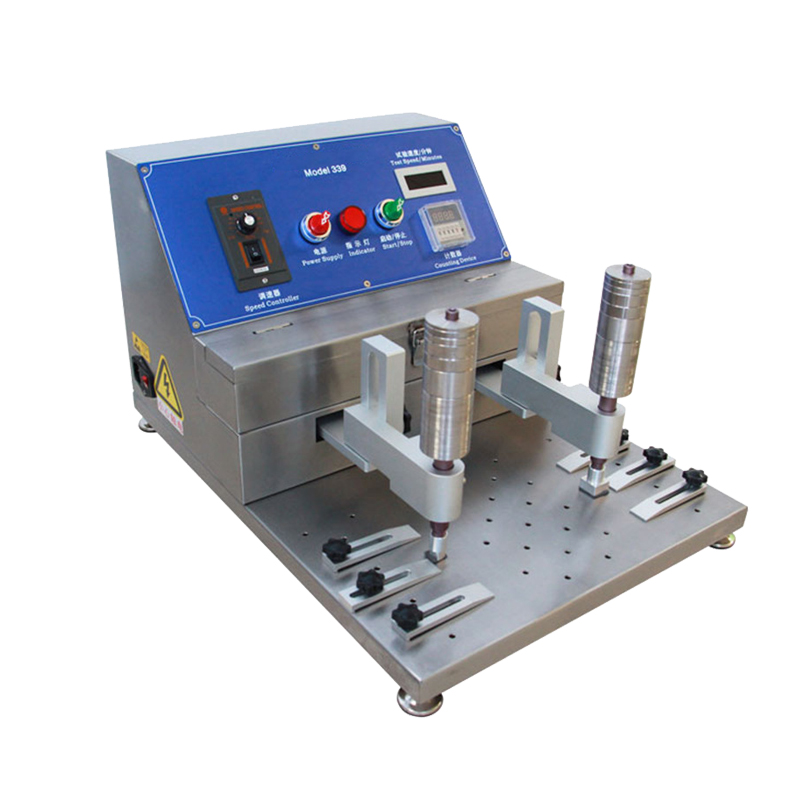

Friction Testing MachineHome > Products > Friction Testing Machine
Description:
The friction testing machine is suitable for all kinds of non-conductor coating layers, all kinds of plastic products oil injection, silk screen surfaces for friction test, such as computers, mobile phones (P.D.A), MP3, CD/VCD/DVD, cordless phone, electronic dictionary, etc., the friction testing machine can also be used as LCD nod fatigue test and handwriting stroke test;
It can use the eraser, artificial sweat, steel velvet, or alcohol friction sample surface to determine the wear resistance of the sample.
Parameters:
Simultaneous Test Sample | 2pcs |
Testing Load | 80-1000g |
Maximum Load Bearing | 5kg |
Move Adjustable Range | 2~25mm / 10~50mm |
Testing Speed | 10~60 times /min(adjustable) |
Load weights | 10g, 20g, 25g, 50g, 100g, 200g, 500g |
Power Supply | 220V / 5A |
Size | 63*45*37cm(L*W*H) |
Weight | About 30kg |
Speed input mode | Rotary knob |
Friction frequency | The speed frequency can be adjusted without section |
Test space | The test rod can be adjusted up and down to the required distance |
Product Feature:
● Friction testing machine materials are made of stainless steel, good corrosion resistance;
● The friction testing machine is equipped with three kinds of fixtures :45° pencil hardness scratch test fixture, eraser test fixture, alcohol test fixture, can be used for pencil hardness scratch test, rubber sassafras, alcohol wear test;
● Friction frequency: no stage type can adjust the speed frequency, and digital display speed;
● Friction counter: 6-bit preset LCD display counter, with power failure memory function, automatically stop when you reach the set number;
● Test round trip rate: 10 ~ 60 times /min continuously adjustable;
● Friction distance: 10mm ~ 50mm can be freely adjusted;
● The test rod can be adjusted up and down to the required distance.
