Description:

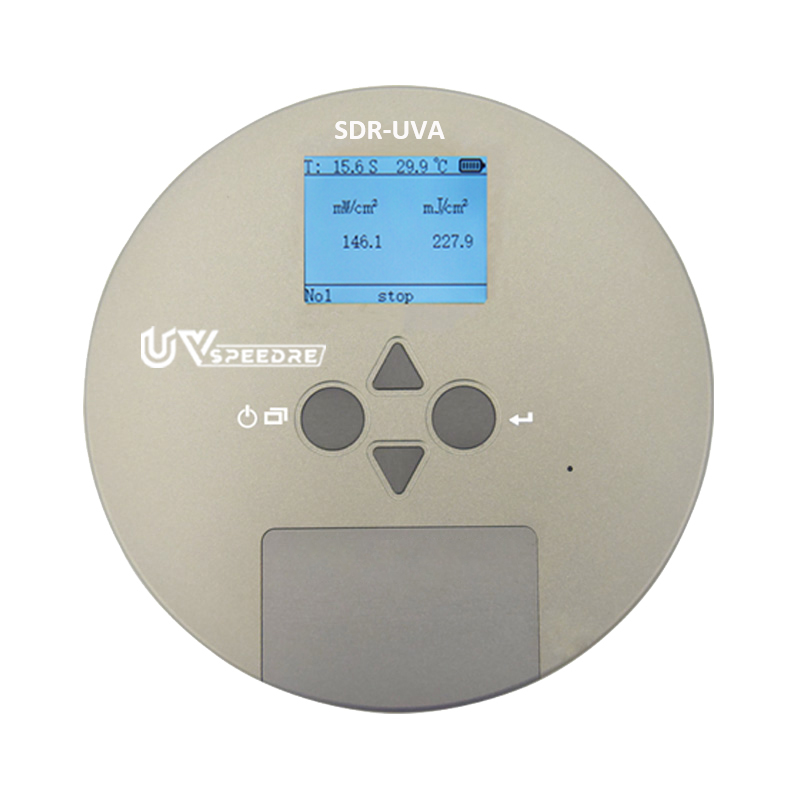

SDR-UVA UV energy radiation meter is a high-precision and high-efficiency UV energy radiation detection instrument, mainly suitable for electronic components industry, spraying industry, UV coating industry, printing industry and other types of needs for testing high-pressure mercury lamp, low-pressure mercury lamp, xenon lamp, Detection of light intensity and energy of mercury lamp, halogen lamp, printing lamp, light cleaning lamp, optical disc special lamp, ultraviolet iron lamp, short-arc xenon lamp. The SDR-UVA UV Energy Meter can measure not only UV energy and light intensity, but also temperature, truly allowing one machine to meet your different needs

Product Advantages:

lTest UV energy, UV light intensity and temperature at the same time

lThe instrument unit can be switched independently to meet the various needs of different customers

Product Parameters:

● Spectral Range: UVA (320-400nm), λ:365nm

● Measurement range:

High power version (default): 0.1–20000mW/cm2 ; 0–999999mJ/cm2 (0.1W/cm2–20W/cm2 ; 0.1J/cm2–999.9J/cm2）

Low power version (optional): 0.1–20000uW/cm2 ; 0–999999uJ/cm2 (0.1mW/cm2–20mW/cm2 ; 0.1mJ/cm2–999.9mJ/cm2)

● Measurement accuracy: ±(5 + 5%H) where H is the measured value

● Resolution: 0.1

● Power storage interval: 0.1s/time

● Temperature storage interval: 0.1s/time

● Range of Working Temperature: –55°C to 125°C

● High accuracy over full temperature range: -55℃ ~ -10℃: ±1℃; -10°C ~ 85°C: ±0.5°C; 85℃ ~ 125℃: ±1℃

● Data Storage Duration: 5 sets of data, with a total duration of 15 minutes

● Measurement Mode: Automatic measurement mode, manual measurement mode

● Data Transmission: Yes

● Analyzing Software: Yes

● Sampling Speed: 0.01s/time

● Unit Conversion: W/cm2, J/cm2 ; W/m2, J/m2 (default range switching unit)

● Screen: Color LCD screen

● Power Supply: 2 pack - AAA batteries

● Instrument Size: Diameter120mm*Height 13mm

● Instrument Weight: 180g

● Packaging Weight: 1200g

● Carton size: 240mm*205mm*80mm

Product Features:

★ Intelligent UV energy radiation recorder, automatic identification of testing wavelength range

★ Color screen displays UV energy, UV light power, temperature, and test duration

★ USB interface data transmission, connected to computer software to read recorded data, perform data analysis, and export test reports

★ High precision temperature sensor, fast and real-time response to test temperature

★ Large capacity data storage, manual mode can store 5 sets of 3-minute data sets cyclically,and automatic mode can store continuously for 15 minutes

★ The stored data will not be lost after power failure, and the system will automatically ask whether to delete the previous data upon startup

Packing List:
