Description:

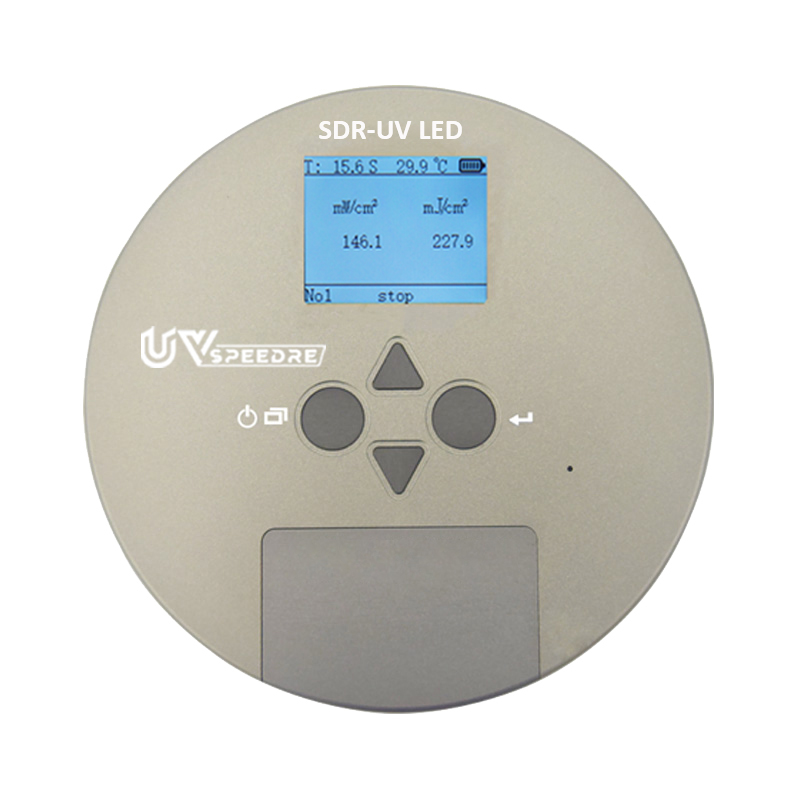

SDR-UV LED UV energy radiation meter is a high-precision and high-efficiency UV energy radiation detection instrument, mainly suitable for electronic components industry, spraying industry, UV coating industry, printing industry and other types of needs for testing high pressure mercury lamp, low pressure mercury lamp, xenon lamp, Detection of light intensity and energy of mercury lamp, halogen lamp, printing lamp, light cleaning lamp, optical disc special lamp, ultraviolet iron lamp, short-arc xenon lamp. The SDR-UV LED UV energy meter can not only test UV energy and light intensity, but also test temperature, truly allowing one machine to meet your different needs

Product Advantages:

lTest UV energy, UV light intensity and temperature at the same time

lThe instrument unit can be switched independently to meet the various needs of different customers

Product Parameters:

● Spectral Range: UV LED (340-420nm), λ:395nm

● Measurement range:

High power version (default): 0.1–20000mW/cm2 ; 0.1–999999mJ/cm2  (0.1W/cm2–20W/cm2 ; 0.1J/cm2–999.9J/cm2）

Low power version (optional): 0.1–20000uW/cm2 ; 0.1–999999uJ/cm2  (0.1mW/cm2–20mW/cm2 ; 0.1mJ/cm2–999.9mJ/cm2)

● Measurement accuracy: ±(5 + 5%H) where H is the measured value

● Resolution: 0.1

● Power storage interval: 0.1s/time

● Temperature storage interval: 0.1s/time

● Range of Working Temperature: –55°C to 125°C

● High accuracy over full temperature range: -55℃ ~ -10℃: ±1℃; -10°C ~ 85°C: ±0.5°C; 85℃ ~ 125℃: ±1℃

● Data Storage Duration: 5 sets of data, with a total duration of 15 minutes

● Measurement Mode: Automatic measurement mode, manual measurement mode

● Data Transmission: Yes

● Analyzing Software: Yes

● Sampling Speed: 0.01s/time

● Unit Conversion: W/cm2, J/cm2 ; W/m2, J/m2 (default range switching unit)

● Screen: Color LCD screen

● Power Supply: 2 pack - AAA batteries

● Instrument Size: Diameter120mm*Height 13mm

● Instrument Weight: 180g

● Packaging Weight: 1200g

● Carton size: 240mm*205mm*80mm

Product Features:

★ Intelligent UV energy radiation recorder, automatic identification of testing wavelength range

★ Color screen displays UV energy, UV light power, temperature, and test duration

★ USB interface data transmission, connected to computer software to read recorded data, perform data analysis, and export test reports

★ High precision temperature sensor, fast and real-time response to test temperature

★ Large capacity data storage, manual mode can store 5 sets of 3-minute data sets cyclically,and automatic mode can store continuously for 15 minutes

★ The stored data will not be lost after power failure, and the system will automatically ask whether to delete the previous data upon startup
